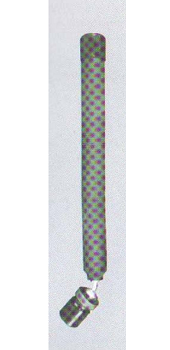

BTA-TBKA-0.35VU Antenna
An ultra-wideband antenna meets the technical specification Q/321283LDH-20-2003. It is easy and quick for assembly. It has good matching characteristic and radiation characteristics in the working band. It is used in manpack radio sets.
Specifications
Frequency range: 100~400MHz
Power capacity: 5W
Nominal impedance: 50?
VSWR: ≤3
Total length: 350mm
Weight: 0.4kg
Connector: BNC-J plug fixed with 3/4"threading sheath
