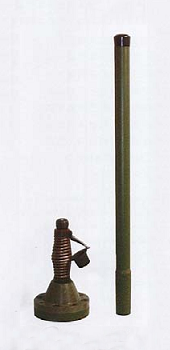

BTA-TB-1 Antenna
BTA-TB-1 whip antenna is wide band antenna ，it is suitable for equipping with vehicle borne UHF radio set. This antenna can substitute of present used antenna for UHF radio set（400M-430MHz），and also can satisfy the operation of advanced high speed digital radio set. The prominent feature of this antenna is wide band matching network，which can optimum matching the antenna and the radio set to obtain a better gain. It also has the feature of light weight，easy installation，and short in length.
Specifications
Frequency range: 225~512MHz
Power capacity: 50W
Nominal impedance: 50?
VSWR: ≤3.5
Total length of antenna: ≤1m
Weight: ≤2kg
Operting temperature: -50℃~+70℃
Connector: BNC type plug
